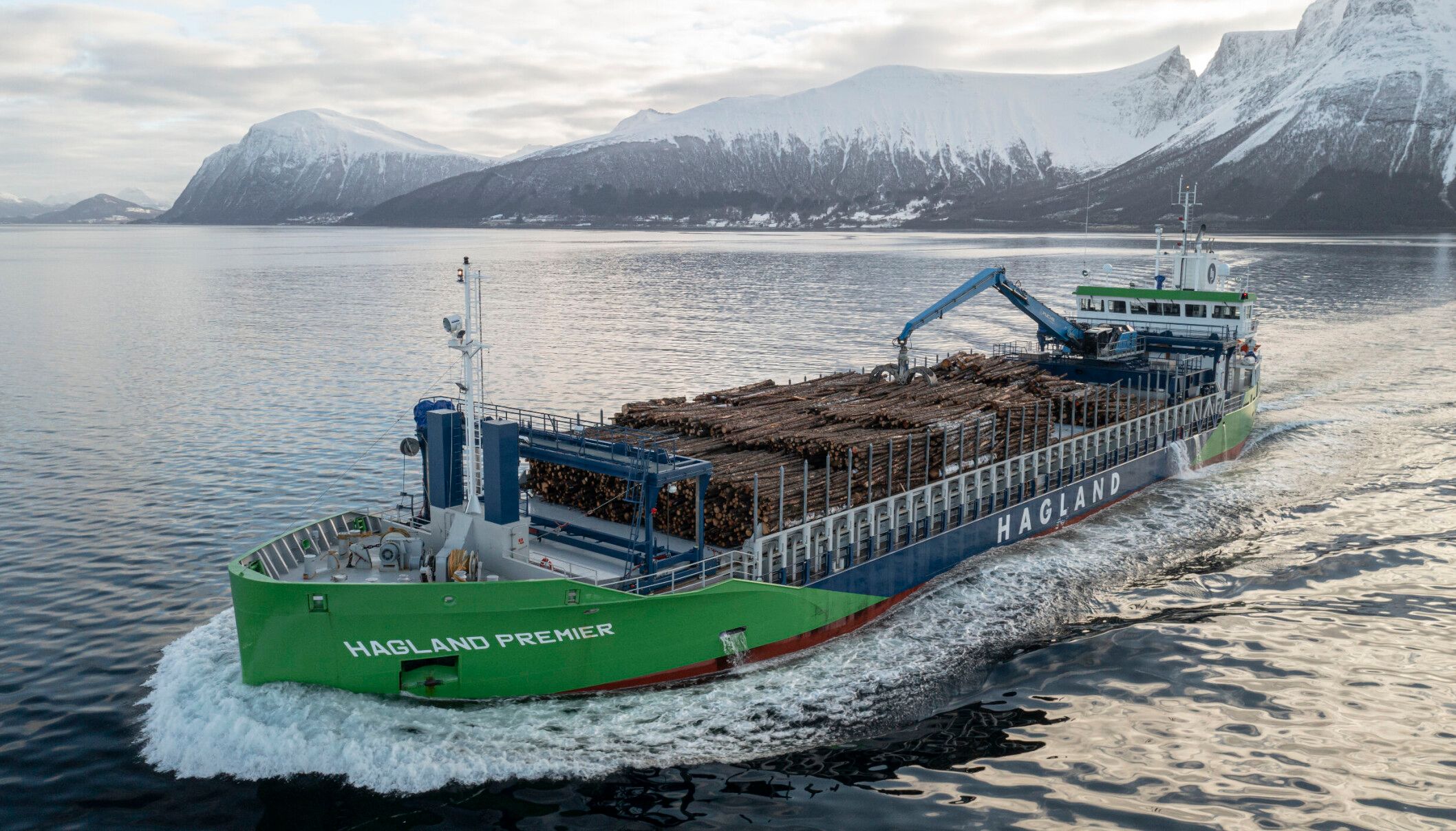

Hagland TBA 2

Photo by: UAVPIC

Dimensions:

LOA 86.93 m / LBP 84.98 m / Beam 15.0 m / D 6.35 m

Gear:

Electric cargo handler mounted on gantry, fitted with grab for bulk cargoes and logs. Bobcat for cleaning

Hold capacity:

214,307 cbft (6,068 m3) grain/bale

Timber capacity:

Abt. 3,800 solid cbm

Speed & consumption:

Max speed 12.2 knots / Eco speed 11 knots

Type of vessel:	Selfdischarger / boxhold
DWAT:	4,900
DWCC:	4,800
GT / NT:	3,052 / 1,685
Hold dimensions:	1 hold: 57.785 m x 12.385 m x 8.646 m HWLTHC 7.84m Two moveable bulk-heads
Hatch:	Pontoon type
Capacities:	1,870 mt ballast / 120 mt bunkers / 32 mt FW
Main engine / Propulsion:	Plug-In Battery Hybrid TBA Pitch propeller in nozzle
Special features:	1000 kWh battery. Shore connection 2 x Cavotec NEK IEC/PAS 80005-3 (400-690 V)
Class:	BV GENERAL CARGO SHIP - ELECTRIC HYBRID(PM, PB, ZE), AUT-UMS, MON-SHAFT, STRENGTHBOTTOM, BATTERY SYSTEM, INWATERSURVEY
Built:	2026
